Cylinder Shot Blasting Machine
Product name：Rotary Drum Type Cylinder Shot Blasting Machine
Item：Q3110BII
Details：

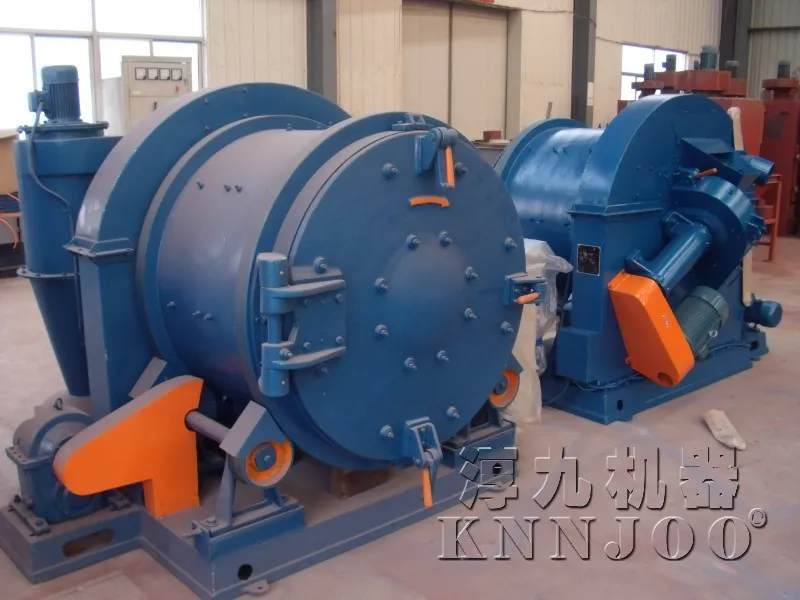

Rotary Drum Type Cylinder Shot Blasting Machine
Description
Rotary Drum Type Cylinder Shot Blasting Machine is designed for Shot Blast Cleaning of small or medium size iron, steel, alloy and non-ferrous castings, forgings, heat treated parts.
Working principle
Rotary Barrel / Drum Type Shot Blasting is Optimum shot blasting for small, flat and light components .It is probably the smallest batch cleaning machine in family of Airless Blasting machines. This is a smaller version of tum blast machine. The rotary shot blasting machine is provided with a control panel and electronic timer as standard supply. The machine is suitable for small job shops, foundries & forging units.
Applications

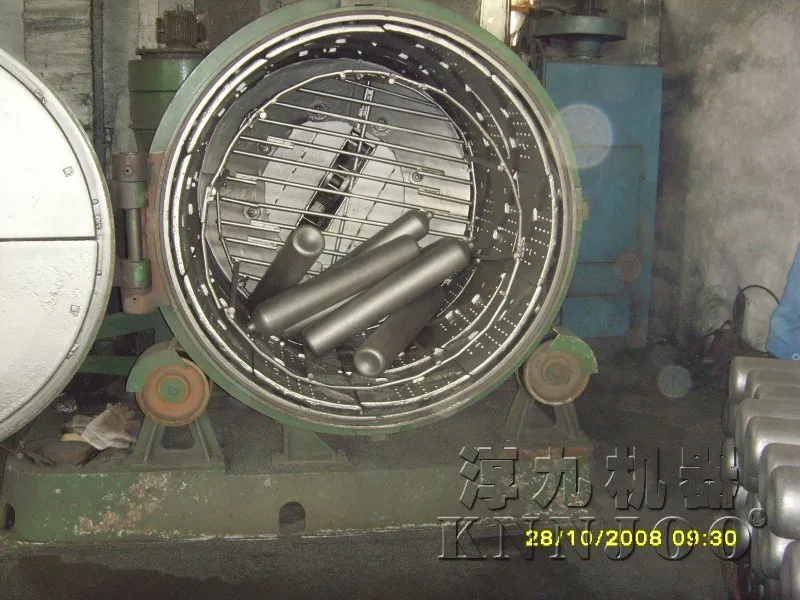

This machine can clean cylinder ( length is less than 1meter, and the diameter is about 20mm)
Technique parameter
ITEM | units | Q3110 | Q3110BI | Q3113 | Q3113BII |
Drum diameter | mm | 1000 | 1000 | 1300 | 1300 |
Loading capacity | kg | 300 | 300 | 700 | 700 |
max.weight of single piece | kg | 15 | 15 | 30 | 30 |
productivity | kg/h | 600-1500 | 600-1500 | 2500-3500 | 2500-3500 |
power | kw | 10 | 10 | 14.5 | 16 |
Some parts of Rotary Drum Type Cylinder Shot Blasting Machine
Drum and the conveying system
The enclosure of the barrel / drum is made of casting iron, inside which the protecting plates are fastened with the bolts.
The endcover is set on one side of the barrel, so it is convenient to load or unload workpiece and it’s easy to replace the protecting plates and maintenance.
Shot recycling and separating device
The shotrecycling device consists of the screw belt between the protecting plates of the barrel and the enclosure, elevator and the separating sieve.Blast wheel / wheelblast turbine
The part is the main composition, which consists of impeller round plate, blades distributor, control cage, main shaft etc.
Dust collector
The machine adopts dry whirl type dust-collecting device. The separating efficiency is high. For the common green sand, the dust-collecting efficiency is up to 99% and 7μdust can be separated, so the cleaning condition is fine. (Q3110BI machine with Cyclone type , Q3110Bii with bag type dust collector , the machine body is the same one )
