Cylinder Shot Blasting Machine

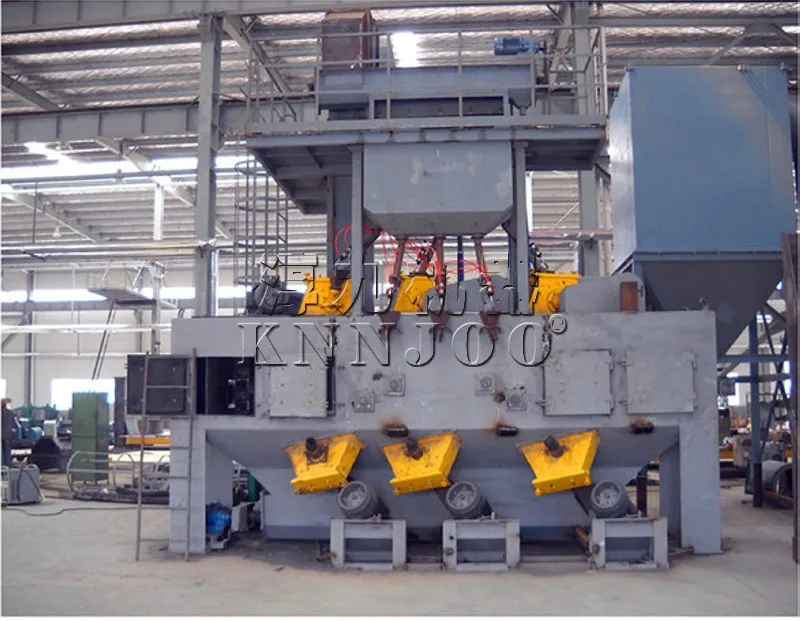

Tunnel Type Cylinder Shot Blasting Machine
Description
Tunnel Type Shot Blasting Machine for the treatment of LPG cylinders with motorized biconical roller conveyor, equipped with no. 4 x 15 kW wheelblast turbines suitable for a production of more than 200 bottles/hour.
This kind of shot blasting machine is a continuous shot blasting machine for cleaning Gas cylinder.
Working principle
Applications
It applies to clean away rust, oxide layers from steel cylinder and after shot blasting, it can get roughness surface and improve adhesion between paint film and steel surface. Thus it can improve anti-rust capacity and prolong the life surface of LPG cylinder
Paint stripping or cleaning after heat treatment of bottles/cylinders and cleaning of the external surface of pipes.
Bottles/cylinders, tanks and cylindrical pars: removal of oxide, calamine and paint from bottle/cylinders to be reconditioned.
Technique parameter
Type | Q695 | Q6910 |
Tidy up cylinder diameter(mm) | 300 | 300----600 |
Abrasive flow rate(kg/min) | 4*250 | 4*390 |
Tidy up speed(m/min) | 0.5-4 | 1-8 |
our company is cylinder shot blasting machine manufactruer in China , machines are customer-made according to user' cylinder size.
Some parts of Tunnel Type Cylinder Shot Blasting Machine :
Entrance and exit Roller conveyors
Hazardous duty electrical components
Dust collecter
Programmable PLC with touch screen control (Optional)
Auxiliary abrasive hopper and low level sensor
Rotary scalp drum
