The series of QXY steel sheet shot blasting pre-treament line are mainly consist of warm-up, shot blasting and spray painting and drying process. It applies to shipping, car, motorcycle, bridge,machine etc. which is in the line of steel board, section and structure casting to wipe of surface rusting and painting art.
Steel Plate Shot Blasting Coating Machine
NO. | Type Item | QXY-1600 | QXY-2000 | QXY2500 | QXY3000 |
1 | Steel Plate | With | 500-600 | 1000-2000 | 1000-2500 | 1000-3000 |
Thickness | 3-20 | 3-60 | 5-30 | 3-60 |
Length | 2000-12000 | 1500-12000 | 2000-12000 | 2400-12000 |
2 | Structural parts | Maximum width | 1600 | 800 | 2500 | 1500 |
Maximum height | 500 | 300 | 400 | 800 |
Length | 2000-12000 | 2400-12000 | 2000-12000 | 2400-12000 |
3 | Permissible | Permissible | 1 | 1 | 1.5 | 2 |
Piece transporting speed | 2-4 | 1-5 | 2-4 | 0.5-4 |
4 | Total power | 450 | 413.2 | 550 | 614 |
5 | Outline dimension(L*W*H) | 7800*7400*62000 | 62000*12000*7230 | 6800*6200*54000 | 55545*12655*7782 |
Steel Plate Coating Cleaning Line Features
1. Steel descaled by this system can lengthen die life, improve burning, welding and machining operations, and provide the proper surface finish for the application of modern coatings.
2. It is mainly formed by pre-heating part, descaling part, spraying paint part and drying part.
3. The descaling part formed by the cantilever centrifugal type impeller heads, the full shutter type sand separator.
4. The pills cleaning adopted high strength nylon rolls and high pressure blower second level cleaning device.
5. The pre-heating and drying part adopted various heating modes, such as electricity, fuel gas, fuel oil and so on.
6. The spraying paint part adopted the high pressure airless spraying.
7. The full line is centralized controlled by Industrial Personal Computer (IPC).
8. As the shape of steel plate is almost regular before processed, it is helpful for mechanical rust removal and automation of spraying paint, improving the efficiency of dust removing, reducing the intensity of labor and environment pollution.
9. Mainly used in the field of shipbuilding, locomotive, antiseptic project and bridge construction industries.
10. Steel Plate Pretreatment Line, Steel Plate Coating Cleaning Line, Steel Plate Shot Blasting Coating Line ,Steel Plate Shot Blasting Painting Machine,Steel Plate Shot Blasting Coating Machine

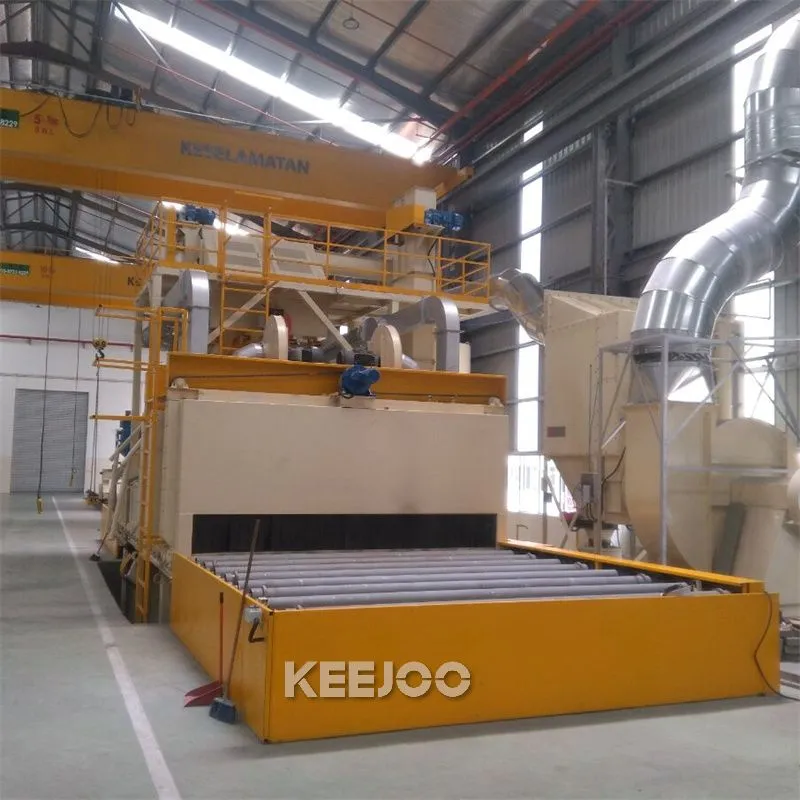

Our workshop:
