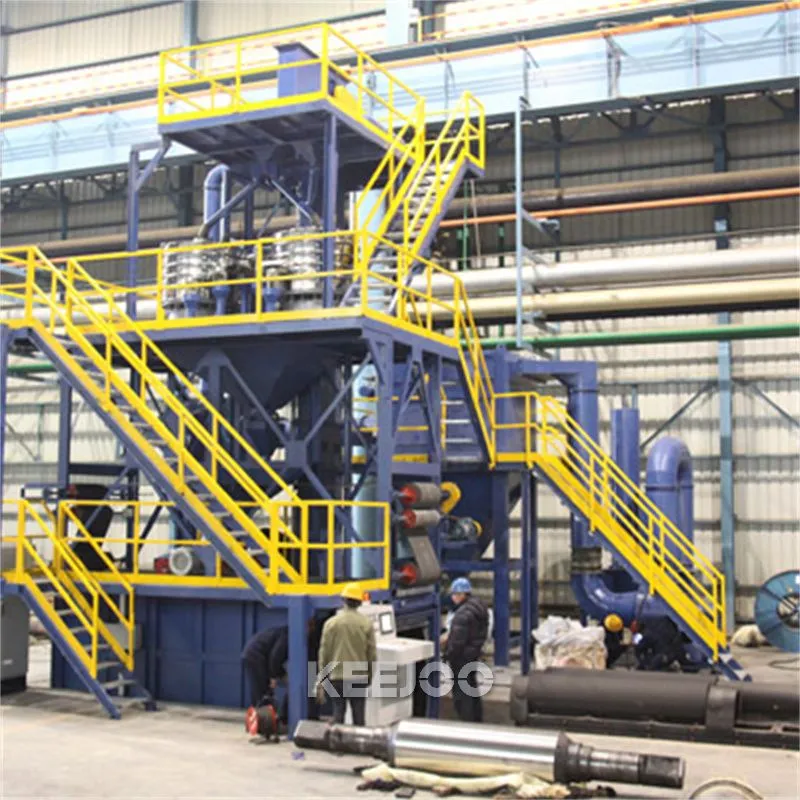

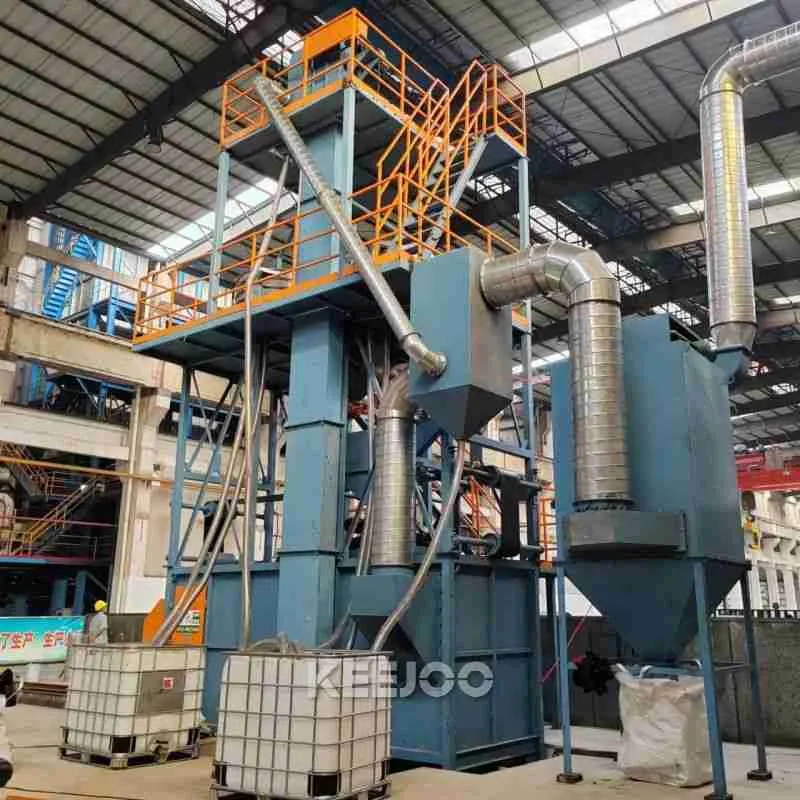

Roll Etching Shot Blasting Machine
Roll Etching Shot Blasting MachineDescriptionOur company-Qingdao Foundry Machine
Skype Roll Etching Shot Blasting Machine
Description
Our company-Qingdao Foundry Machine Co.,ltd. design and produce Roll Etching Shot Blasting Machine for steel industry, the
advantage of roll etchning process provides eatch surfact on HR and CR sheets which
advantage of roll etchning process provides eatch surfact on HR and CR sheets which
helps in retaining paint, zink , power coating and other applications.
Working principle
Roll Etching Shot Blasting Machine for etchning mill rolls. Roller are stationary and the large wheelblast turbine trolley moves
backend forth below blast stream. rolls are rotated; shot blasting gives uniform each surface on mill roll.
backend forth below blast stream. rolls are rotated; shot blasting gives uniform each surface on mill roll.
Applications
Roll Etching Shot Blasting Machine . These machines provide required roughness /etching on rolls used in the rolling mills.
This machine is automatic in operation.
This machine is automatic in operation.
Technique parameter
NO. | Name | Technical data |
1 | hardness for Roughing | HSD93~98 |
2 | Roller diameter | Φ260mm≤Φ600mm |
3 | Roller length | 500~2000 mm |
4 | Total length of rollers | 1100~4000 mm |
5 | texturing surface roughness after Blasting | Ra0.5~5um±15% |
6 | The maximum weight of roll | ≤4000kg |
7 | capacity | 36.4KW |
Some parts of Roll Etching Shot Blasting Machine
Roll Etching Shot Blasting Machine is equipped with third level vibratory screen, so that four types of shots / grits can be used for
obtaining different surface roughness.
1. The machine adopts foreign advanced technology, turbine / blast wheel which the key heart of shot blasting machine adopts
German technology.
German technology.
2. The equipment has the advantages of simple operation, reliable work.
3. Roughing efficiency is high, the operation time is about 10 ~ 15 minutes.
4. PLC control, electrical cabinet is equipped with operation panel, all functions were shown through man-machine annual.
5. The automatic and manual control function. Electric control cabinet is provided with an electrical control instrument.
6. It's equipped with three alarm indication lamp.
