Roller Conveyor Blasting Machine
Product description

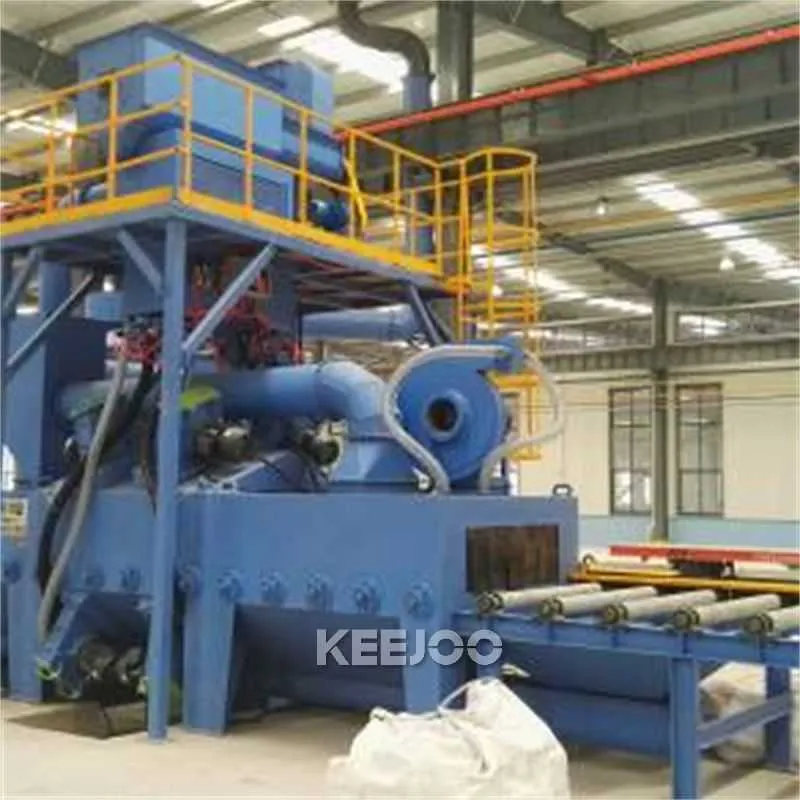

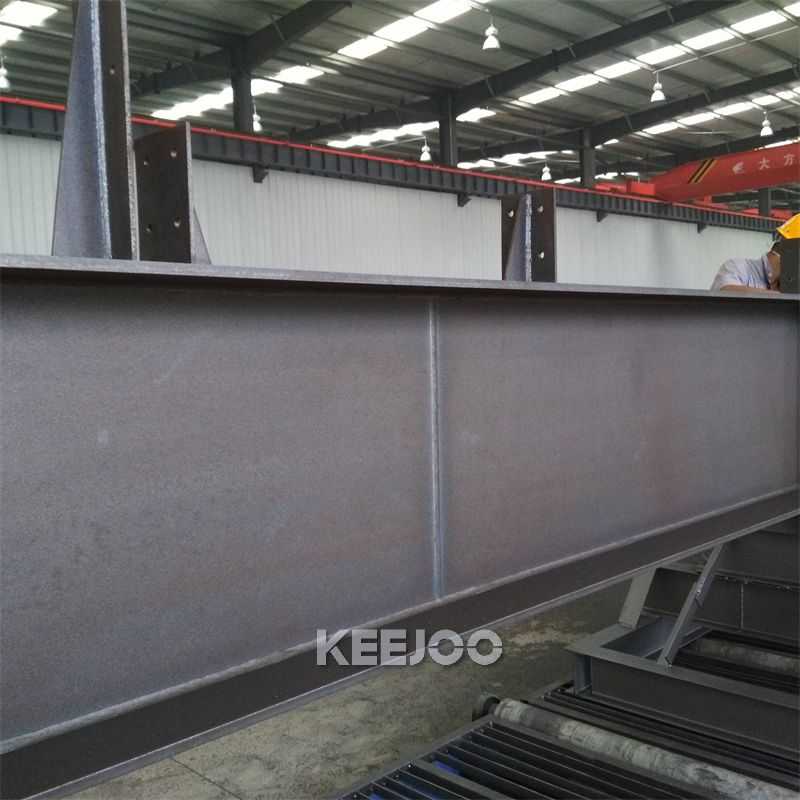

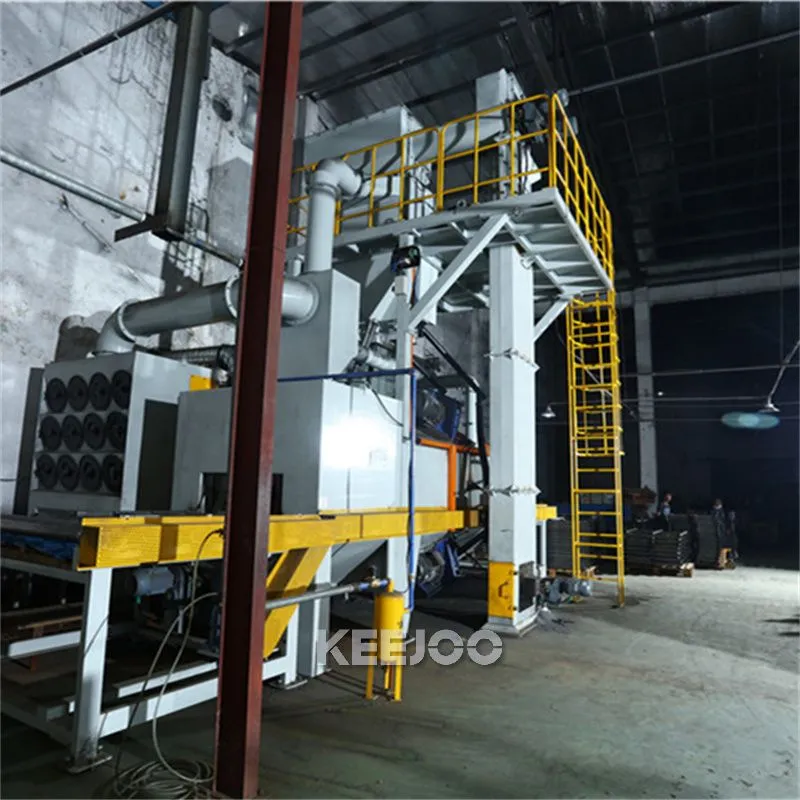

This machine is specially designed for cleaning Steel Beam, just like H Beam, I Beam etc. It is a kind of roller conveyor pass through type automatic shot blasting cleaning machine, which makes the cleaned workpiece get a certain roughness of the clean surface, increase the adhesion of the paint film, improve the surface quality and anticorrosion effect.
The complete machine includes shot blasting room, sub-room, abrasive control unit, shot blasting system, abrasive recycling sorting storage system, ventilation dust removal system, roller conveyor, electrical control system, maintenance platform, and safety system.
Technical data
Model | KJ1500HD | KJ 2000D | KJ 2500HD | KJ 3000HD | KJ 4000HD |
Inlet width (mm) | 1600 | 2100 | 2800 | 3300 | 4300 |
Inlet height (mm) | 550 | 550 | 550 | 550 | 550 |
Processing speed(m/min) | 1.5-4.5 | 1.8-5.0 | 1.0-3.0 | 0.8-2.5 | 0.8-2.0 |
No. Of shot blaster | 4 | 6 | 6 | 6 | 8 |
Power of single shot blaster (kW) | 15/18.5 | 15 | 11/15/18.5 | 15/18.5 | 11/15 |
Roller spacing (mm) | 800 | 800 | 750 | 750 | 750 |
Optional roller conveyor spacing (mm) | 400 | 400 | 500 | 500 | 500 |
Features
1) The structure is compact, the work efficiency is high, the cleaning quality is good, the work is safe and reliable, the operation is stable, and the operation is simple and easy to understand.
2) The cleaning room adopts high-chromium steel guard plate, which is wear-resistant and impact-resistant and has good strength. The indoor roller table adopts wear-resistant sheath.
3) The electrical equipment roller table is used to transport heavy and super long workpieces.
4) The separator can adjust the seal between the baffles, change the thickness of the cloth and the movement trajectory, and can obtain a good separation effect.

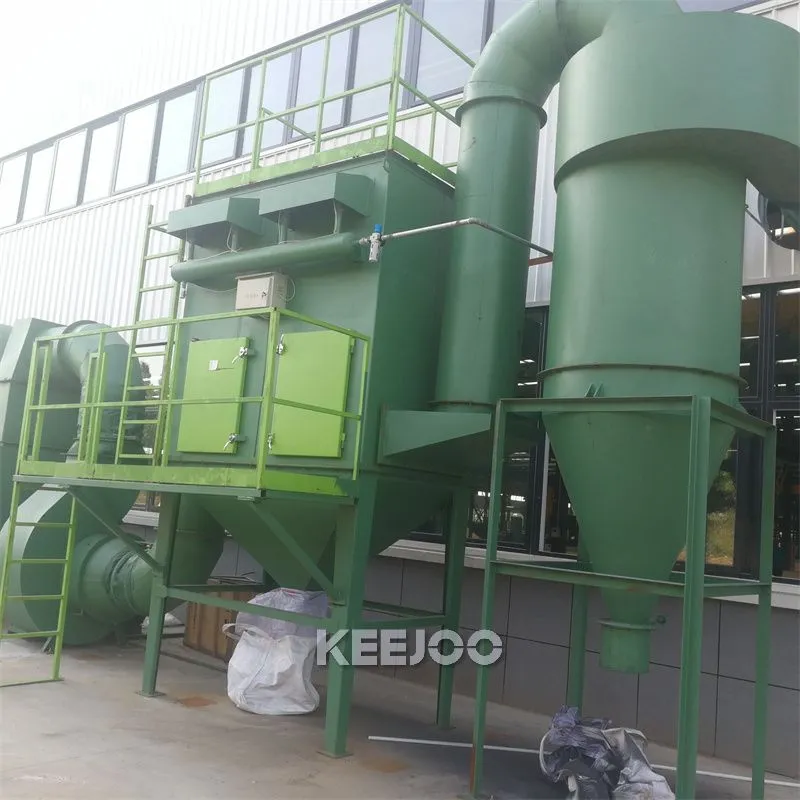

5) The dust collector (bag type dust collector, drum type dust collector) has a large air suction capacity, and the dust removal and filtration are clean, which meets the emission standards stipulated by the State Environmental Protection Agency.
