Tumble Belt Shot Blasting

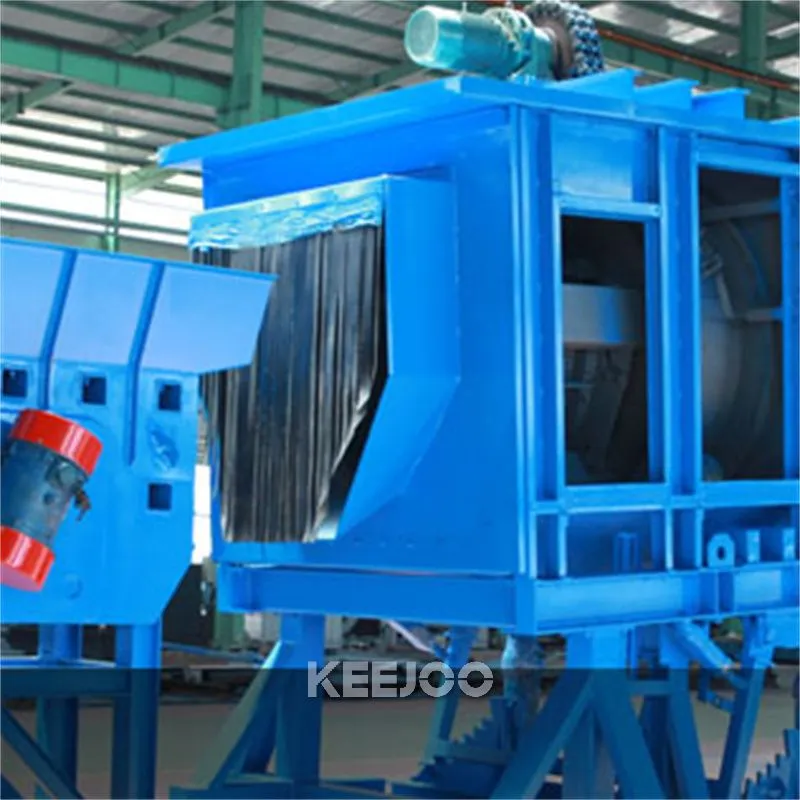

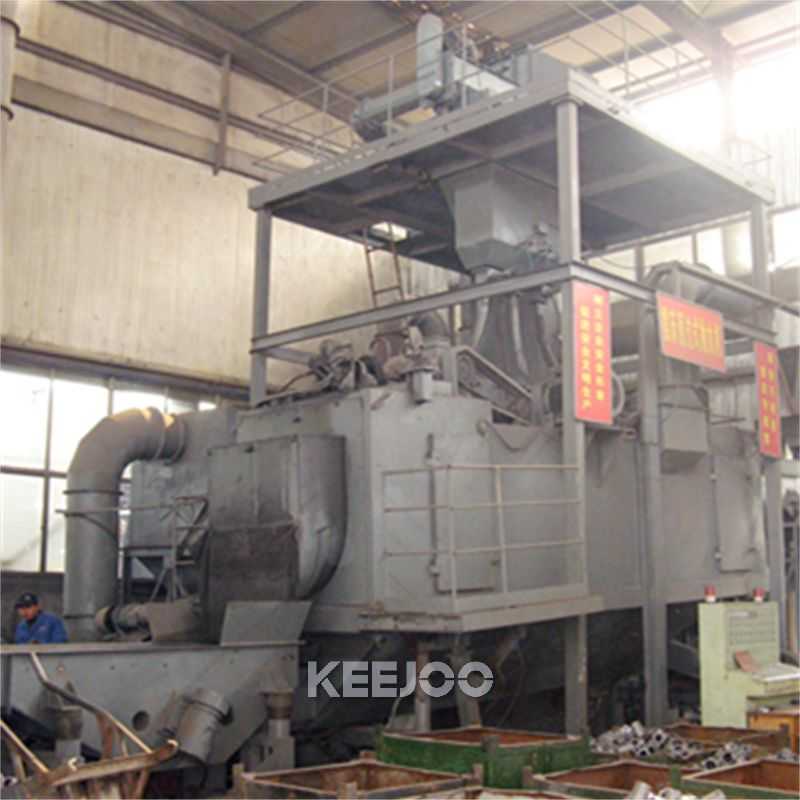

Continuous Belt Shot Blasting Machine
Continuous Belt Shot Blasting MachineDesigned especially for the continuous pro
Skype Continuous Belt Shot Blasting Machine

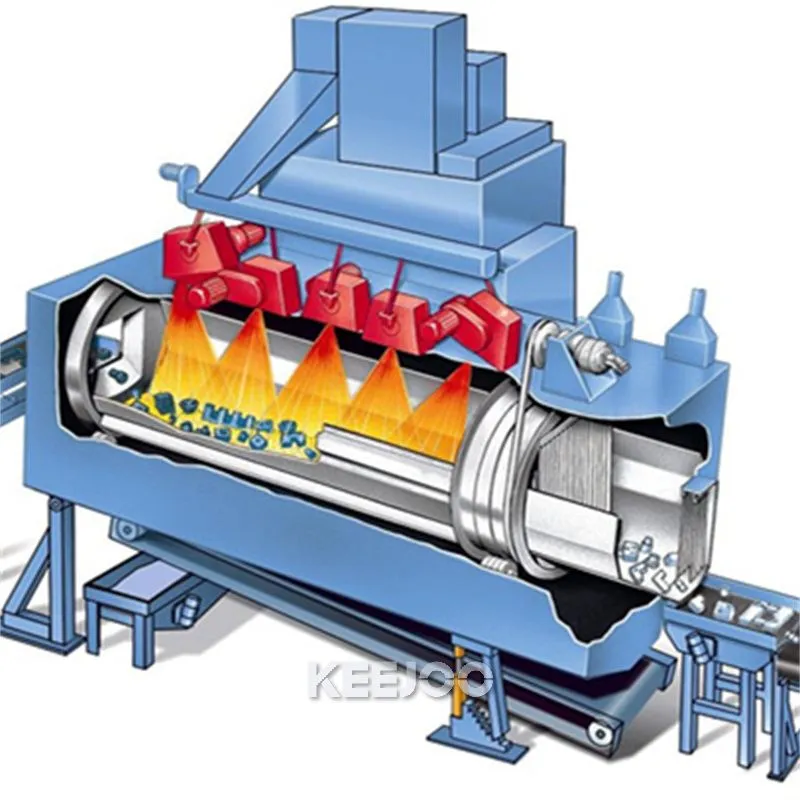

Designed especially for the continuous production of parts. It has the advantage of allowing smooth, constant tumbling with possibility of changing production by changing the rotational speed or the tilt of the belt.
QINGDAO KEEJII GROUP.. company offers two distinct categories of Tumblast Continuous Belt Shot Blasting Machine. Batch Type Tumblast shot blasting machines process parts batch by batch, in a stop-start operation, and Continuous Tumblast Shot blasting machines pass the parts through the machine and onto the next process in the operation.
The following applications can be undertaken:
Desanding and decoring of castings
Descaling of castings, forgings and heat treated parts
Shot peening (without process security)
Deburring of plastic and rubber parts
Continuous Belt Shot Blasting Machine (CT series ) treat the same parts but are situated within either an automated process or a continuous production line. The advantages of this being high performance rates, less or no human contact with parts, and a more speedy, complete process for the parts.
Applications
Automotive industry, Construction Industry , Wind power Industry, Railway Industry , Foundry-Forging Industry, Shipyards, Shot peening, Heat treatment
Removing sand and cores from castings
Descaling castings and forgings
Handling mixed and single product runs
Cleaning clusters
Technical Parameters:
CT 16-650 | CT 20-650 | |
Maximum workpiece diagonal length (mm) | 600 | 600 |
Continuous processing capacity (t / h) | 5-12 | 10-25 |
Workpiece weight (kg) | 65 | 65 |
Number of blast wheel | 2 | 4 |
Power of blast wheel (kW) | 15-45 | 15-45 |
• High cleaning capacity, short blasting times
• Careful arrangement of blast wheels on the machine results in optimum utilisation of the abrasive energy
• Full exposure of all workpiece surfaces to the blast stream
• Automatic material flow control, optimal filling degree of barrel and the automatic adaptation of abrasive throughput result in the best possible cleaning effect and minimal wear on machine components and abrasive
• Blast cleaning performance is maintained at a consistently high level, regardless of fluctuations in production rates
• Easy maintenance set up
• Integration into existing production lines
• Leading technology, outstanding experience
• Adaptable inlet, outlet and blastroom set up to meet different workpiece configurations
• Adaptable to treat tumble-proof fragile castings
