Tumble Belt Shot Blasting

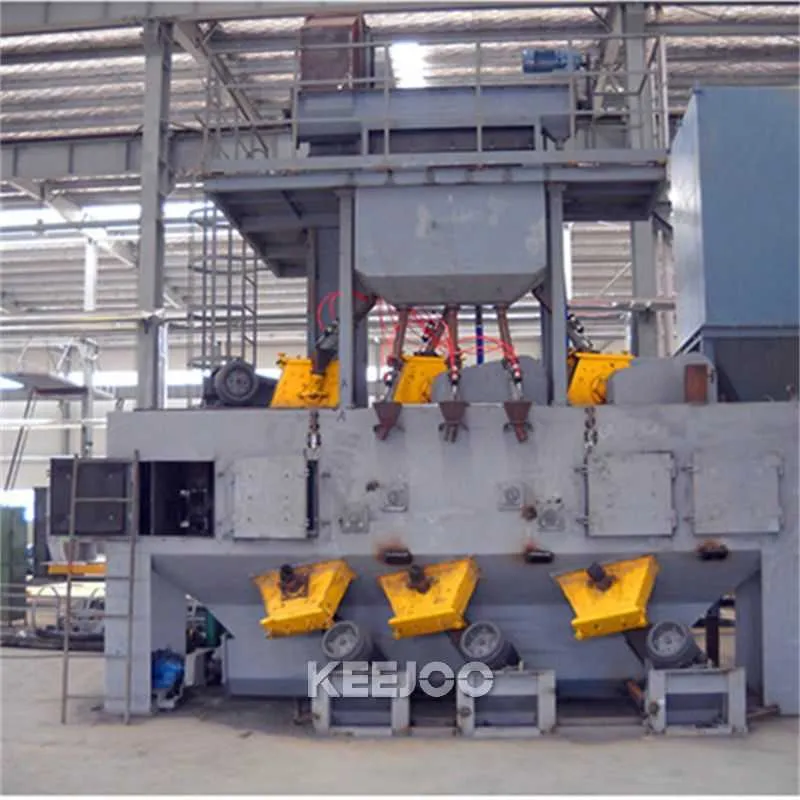

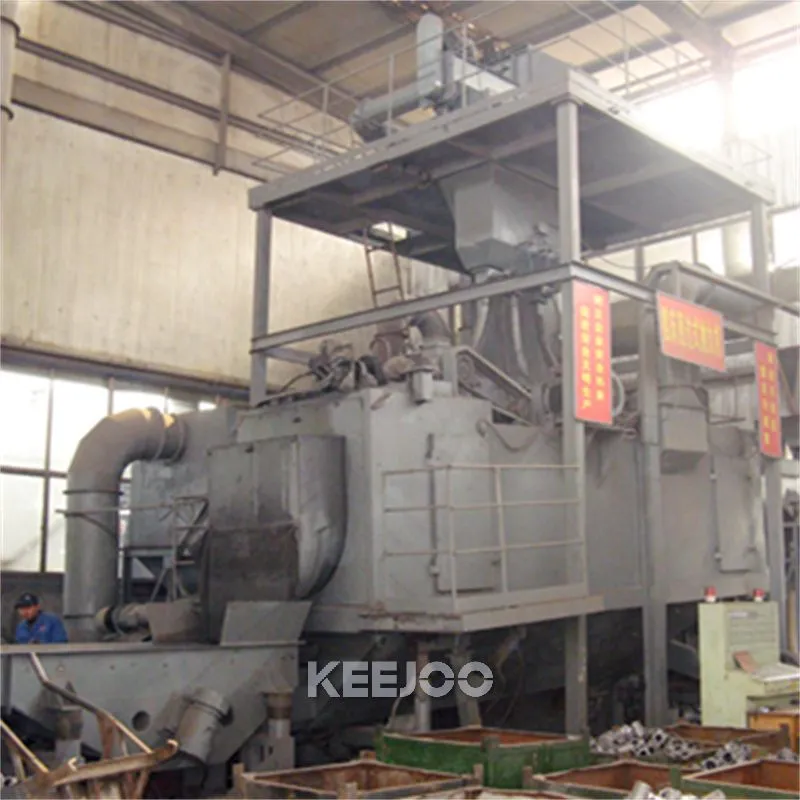

Continuous Tumbling Drum Shot Blasting Machine
These shot blasting machines clean by tumbling parts. Due to the type of process, this system covers a wide spectrum of needs, but we can say that in general it is recommended for any part which, due to its shape and material, can be tumbled. All tumbling machines can be easily integrated into continuous manufacturing processes, with different dosing, loading and unloading systems.
Technical Parameters:
CT 16-650 | CT 20-650 | |
Maximum workpiece diagonal length (mm) | 600 | 600 |
Continuous processing capacity (t / h) | 5-12 | 10-25 |
Workpiece weight (kg) | 65 | 65 |
Number of blast wheel | 2 | 4 |
Power of blast wheel (kW) | 15-4 | 15-45 |
Workpiece dwell-time and abrasive throughput rates are controlled by the volume of castings. This results in the best possible cleaning effect and minimal wear on machine components and abrasive. Automatic adaptation to production rate is a standard feature. The barrel rotation speed and abrasive throughput are electronically controlled, based on preprogrammed parameters.
The unique design makes it easy to integrate CT blast cleaning machines into production lines. In a typical continuous production flow, castings leave the moulding line and pass through the cooling and sand / castings separating systems into the blast cleaning system without any manual operation or floor transportation.
