Tumble Belt Shot Blasting
Decription
GN series rubber belt type shot blasting machine is designed for clean the rust， scale and burr from the surface of easy to roll fall and not easy damaged by collision castings and forgings. With the good protective measures， high shot blasting performance and reasonable circulatory system， this machine can reach a satisfactory cleaning results even for the workpieces which is hard to clean and the strengthening of machine parts such as gears and springs.
Technical data
Parameter | Unit | 3GN | 8GN | 8GN-5R | 15GN |
Productivity | t/h | 0.6-1.2 | 2-4 | 2-3 | 3-5 |
Feeding Amount | kg | 220 | 650 | 650 | 1000 |
Max Weight of SingleWorkpiece | kg | 12 | 32 | 32 | 55 |
Diameter of end disk | mm | 650 | 1000 | 1000 | 1150 |
Effective volume | m3 | 0.15 | 0.3 | 0.3 | 0.5 |
Abrasive flowrate | Kg/min | 180 | 270 | 270 | 300 |
Ventilation capacity | m3 | 2300 | 3500 | 3500 | 5000 |
Total power | kw | 13.1 | 23.2 | 27.4 | 39.4 |
Classification:

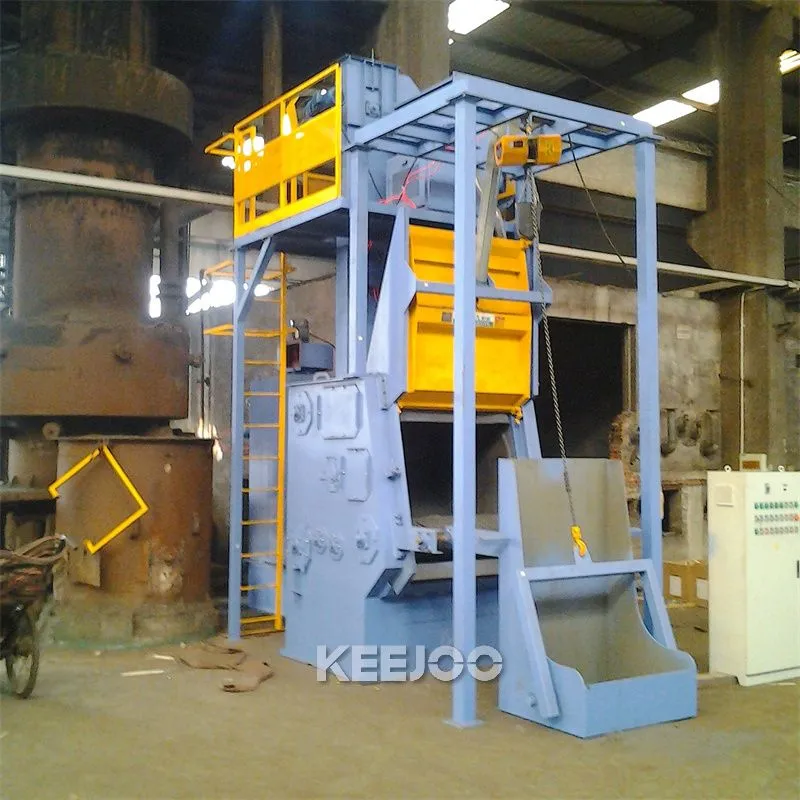

Item NO.: 3GN Tumble Belt Type Shot Blasting Machine With Manual Door
Item NO.: 8GN tumble belt type shot blasting machine with manual door
Item NO.: 8GN tumble belt type shot blasting machine with Pneumatic door
Item NO.: 8GN-5R tumble belt type shot blasting machine with Automatic Feeding And Vibrator Conveyor

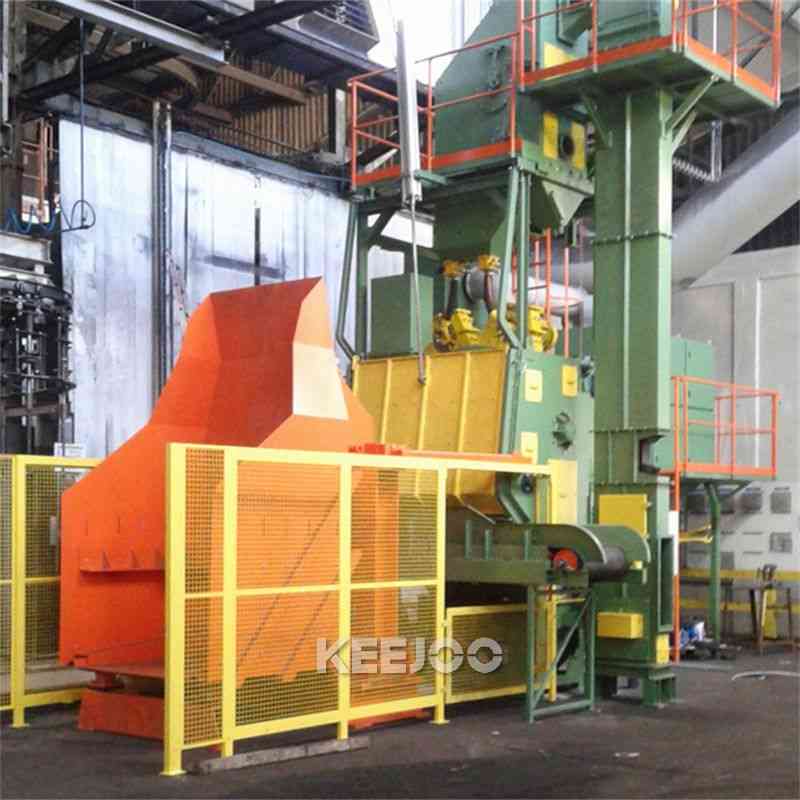

Item NO.: 15GN Steel belt shot blasting machine with Automatic Feeding And Vibrator Conveyor
Item NO.: 28GN Steel belt shot blasting machine with Automatic Feeding And Vibrator Conveyor
Working principle

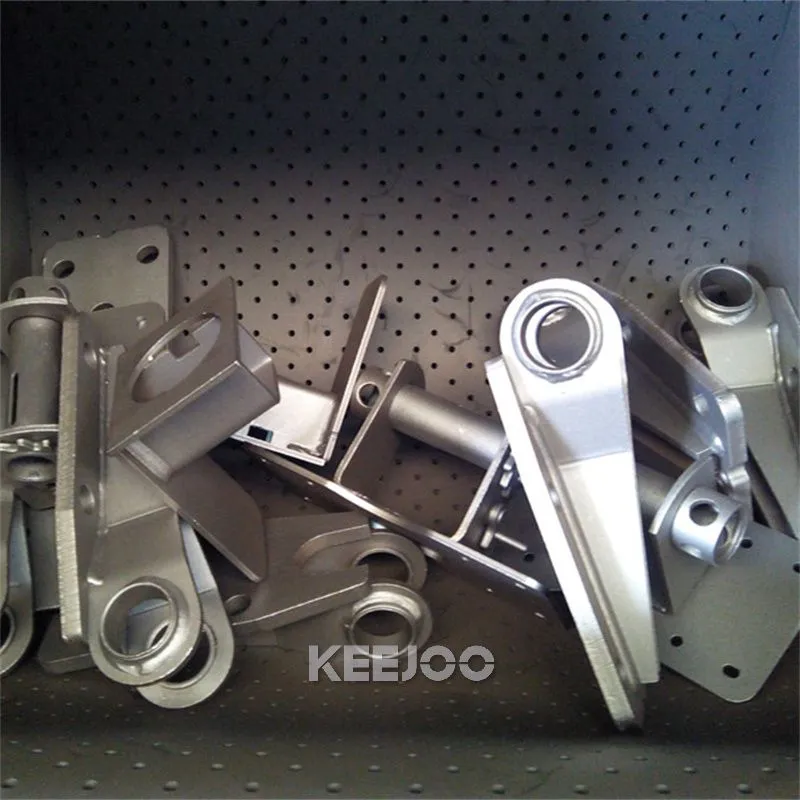

The crawler shot blasting machine is a high-strength wear-resistant rubber crawler or manganese steel crawler to load workpieces. It uses the high-speed rotating impeller to throw the projectile on the workpiece in the chamber to achieve the purpose of cleaning. It is suitable for sand cleaning, rust removal, scale removal and surface strengthening of small castings, forgings, stamping parts, gears, springs and other parts, especially for the cleaning and strengthening of parts that are not afraid of collision. The crawler type shot blasting machine uses the cavity formed by the rubber crawler as the workpiece carrier. When working, the crawler belt rotates to drive the workpiece in the cavity to roll, so the inner and outer surfaces of the parts can be cleaned well. This model is divided into manual and automatic loading and unloading methods, and is most suitable for shot blasting cleaning of large quantities of small parts. Due to the use of rubber tracks, the impact and scratches between the workpiece and the track are reduced, and the footprint is small and the operation is extremely convenient, so it is used by many manufacturers.
Application
Shot peening of heavily stressed components.
Desanding and descaling of castings and forgings.
Preparation of surfaces for protective coating.

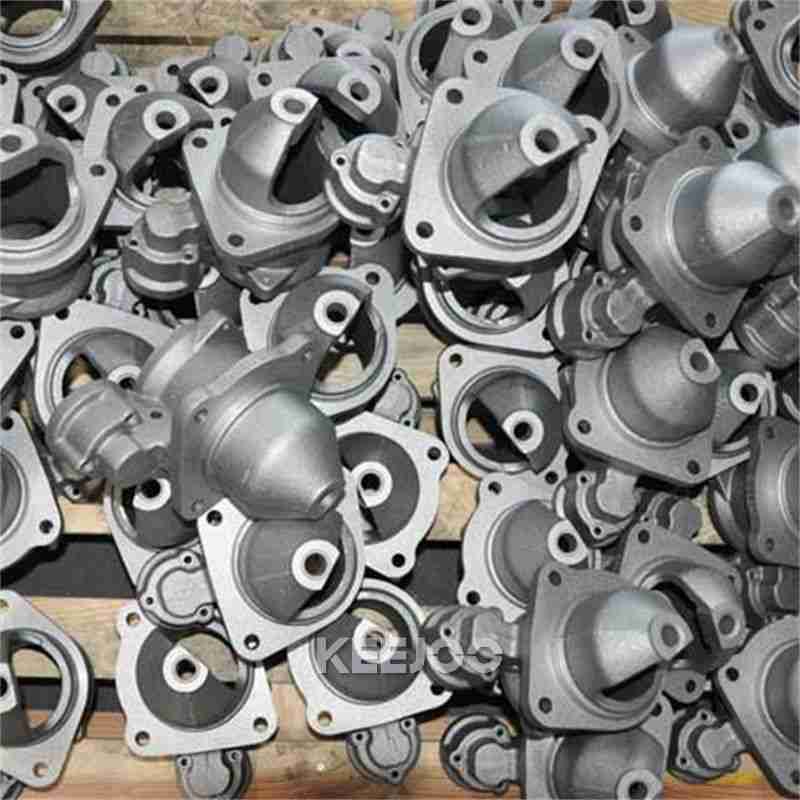

Cleaning of castings and forgings.
Aesthetic finishing of dye castings of aluminum, zinc and alloy steels.
Removal of heat treated scales
