Wire coil rod descaling
Product Description

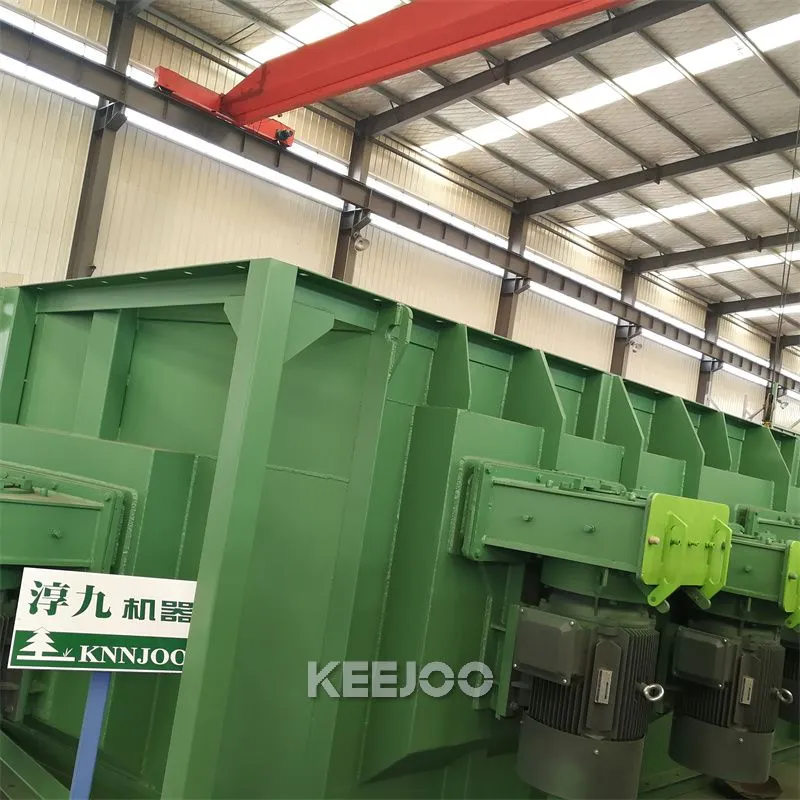

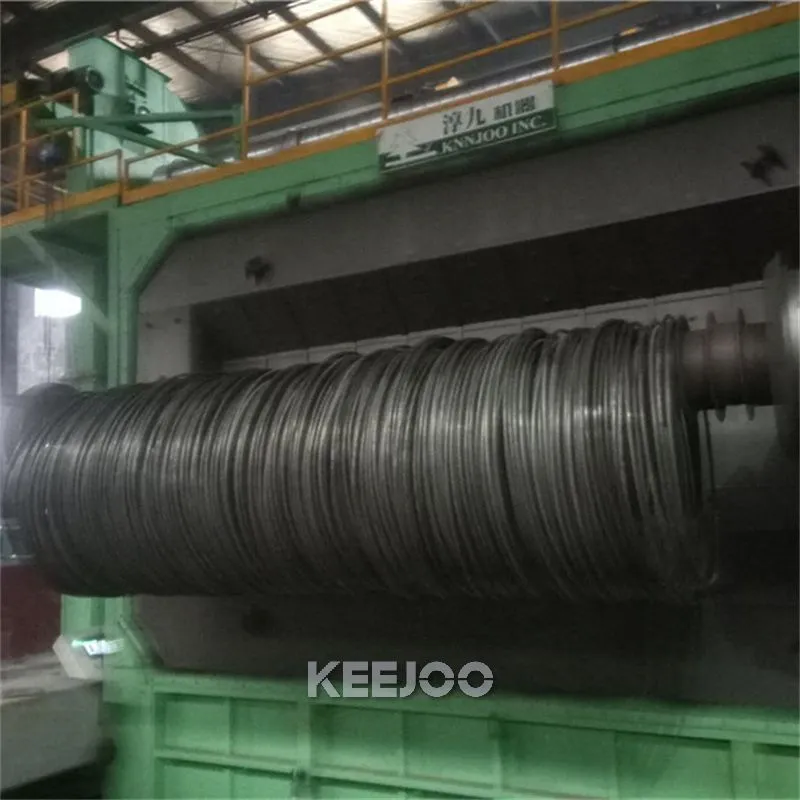

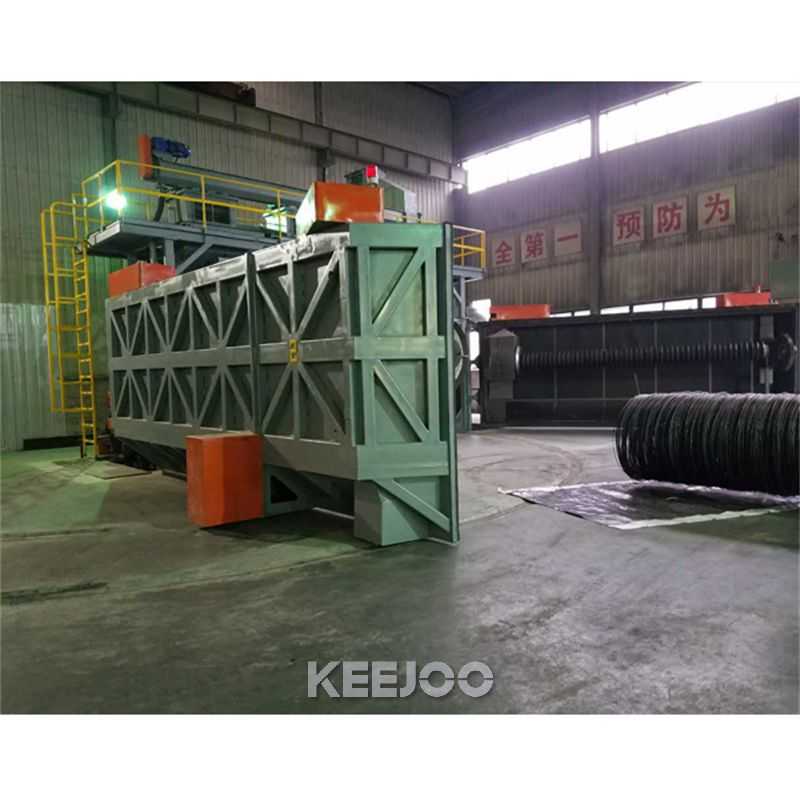

Wire Rod Shot Blasting Machines is a dedicated to clean steel, wire rod, round bar, bar shotblast cleaning equipment. It can to the original state of the surface of the steel with powerful shot, get rid of the rust layer on its, welding slag and scale, to obtain uniform metallic luster, in order to improve the quality of finishing of steel and anti-corrosion effect. This machine can be directly supporting for cold drawing machine to improve the quality of cold drawing.
Wire Rod Shot Blasting Machines is designed according to user requirements and a new type of special equipment is used to clean up a special steel, wire shot blasting equipment. It's the original state of the steel surface blasting impose strong, get rid of its rust layer, welding slag and scale, and thus obtain a uniform metallic luster, in order to improve the quality and finishing of steel corrosion effect.
Technique Parameter:
NO. | ITEM NO. | TECHNICAL INDEXES |
1 | Blast Wheel/turbine | It is controlled by frequency transformer |
2 | Shot Blasting Chamber | High chromium wear plate |
3 | Screw Conveyor | The capacity of conveying : 90-120T/H |
4 | Elevator | The capacity of elevating : 90-120T/H |
5 | Separator | Pneumatic concentrator type |
6 | Flow Adjusting Device | It can be adjusted flow manually equipped with a full set of leading-in pipe |
7 | Dust Collector | IT is equipped with rotary valve discharge |
8 | Electrical Control System | Working Power : 380V/50Hz Operating Power : 220V/50Hz Mitsubishi PLC automatic control system |
9 | Performance | Specification of wire : Ø6-30mm The cleaning speed : 60-90m/min |
Servies
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in time.
3.Customized design is available.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5.Special discount and protection of sales are provided to our distributor.
6.Professional factory:We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
In order to give you the suitable machine , pls provide below message for us :
1.What is your workpiece and the material and the shape ?
2.The Max.Length/Width/Height of the workpiece and the MAX./MIN.Weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4.The power supply you need( Our China :380V, 3PH, 50HZ)
5.Better to send us the workpiece photo or drawing.
