Coil Wire Rod Shot Blasting Machine
Coil Wire Rod Shot Blasting Machine Shot blasting Technology is a valid and eco
Skype Coil Wire Rod Shot Blasting Machine
Shot blasting Technology is a valid and ecological alternative to acid pickling. Our range of models can cover a wide
range of steel wire applications.
range of steel wire applications.
Applications: High and Low Carbon Steel - Cold Heading wire (CHQ) - PC wire plating Quality Wire (PQW) - Stainless Steel
Wire - Ball Bearing Steel Wire

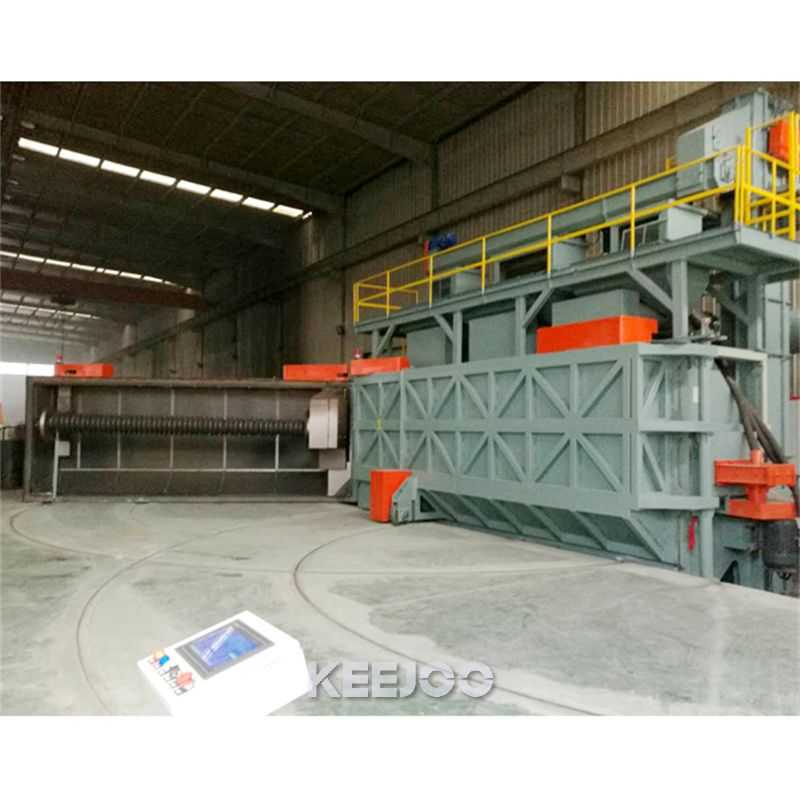

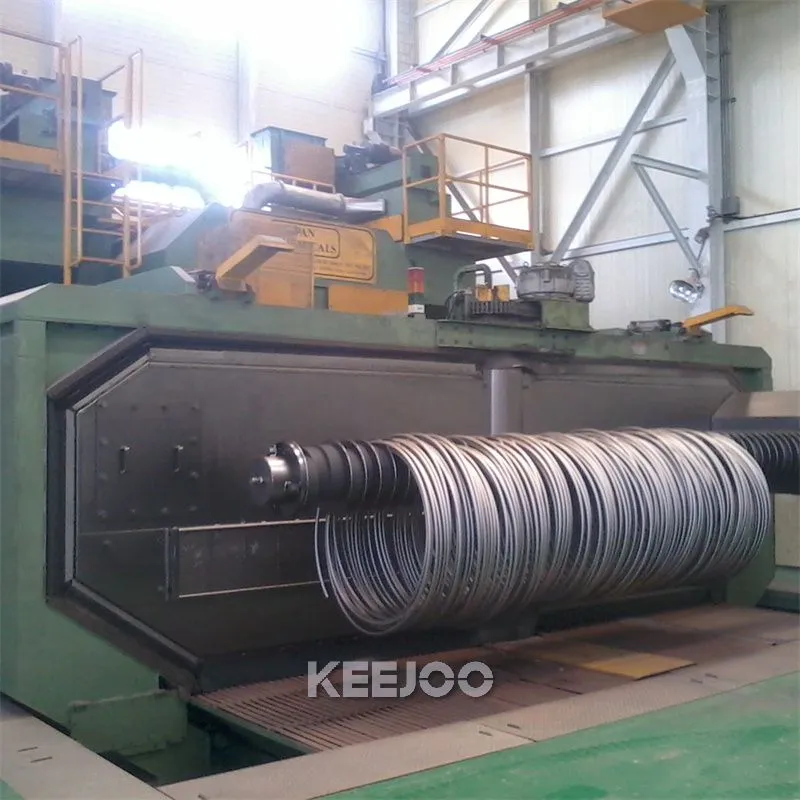

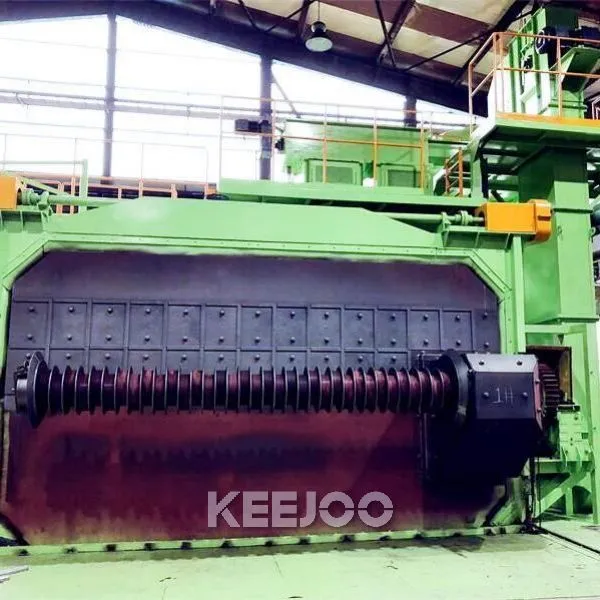

Coil wire Rod Shot Blasting Machine – Coils are loaded onto mandrel mounted on the door of the unit. During the
wheel blast process the mandrel turns which exposes various sections of the coil for better exposure to the blast stream.
wheel blast process the mandrel turns which exposes various sections of the coil for better exposure to the blast stream.
Cycle times will vary significantly depending on the condition of the products prior to processing as well as the finish requirements.
coils upto 650kg to 2000kgs, are loaded on mandrils, it is a shot blasted in 8min.depending in wire diameter ( generally speaking
it is 5.5-6.5mm)
it is 5.5-6.5mm)
a previously pickling took more than 2hours for the same operation. shot blasting increases productivity, operation is simple requires
minimum labour and space, reduces pickling cost ,acid desposal waste, corrosion problem.
minimum labour and space, reduces pickling cost ,acid desposal waste, corrosion problem.
Mechanical shot basted has many advantages over pickling,the whole operation is inexpensive.
Technical index:
MODELS | SHPYII | SHPYII-I | SHPYII-II | SHPYII-IT | SHPYII-IY |
Wire Rod size (mm) | 5.5 - 28 | 5.5 - 28 | 5.5 - 28 | 5.5 - 28 | 5.5 - 2 |
Application | Low carbon | - High Carbon - | Alloy Steel - | Stainless steel | |
No. of turbines | 6 | 6 | 8 | 8 | 10 |
No. of blades per turbine | 8 | ||||
Total installed power (kWatt) | 150 | 200 | 250 | 360 | 450 |
Arm lenght | 3000 | 3500 | 4000 | 5200 | 6000 |
Turbine power (kW) | 18.5--20 | 25 | 30 | 30 | 30 |
Production capacity | Blasting time is 8min for cleaning one wire coil ( 2tons) | ||||
Foundations | required | required | not required | nott required | not required |
Max coil weight: | 2000 Kg | 2000 Kg | 2000 Kg | 2500 Kg | 2700 Kg |
